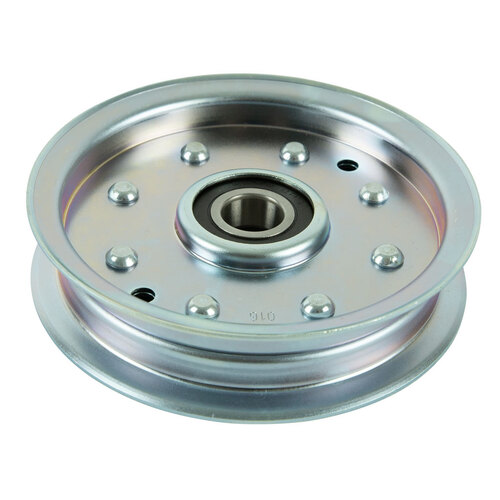

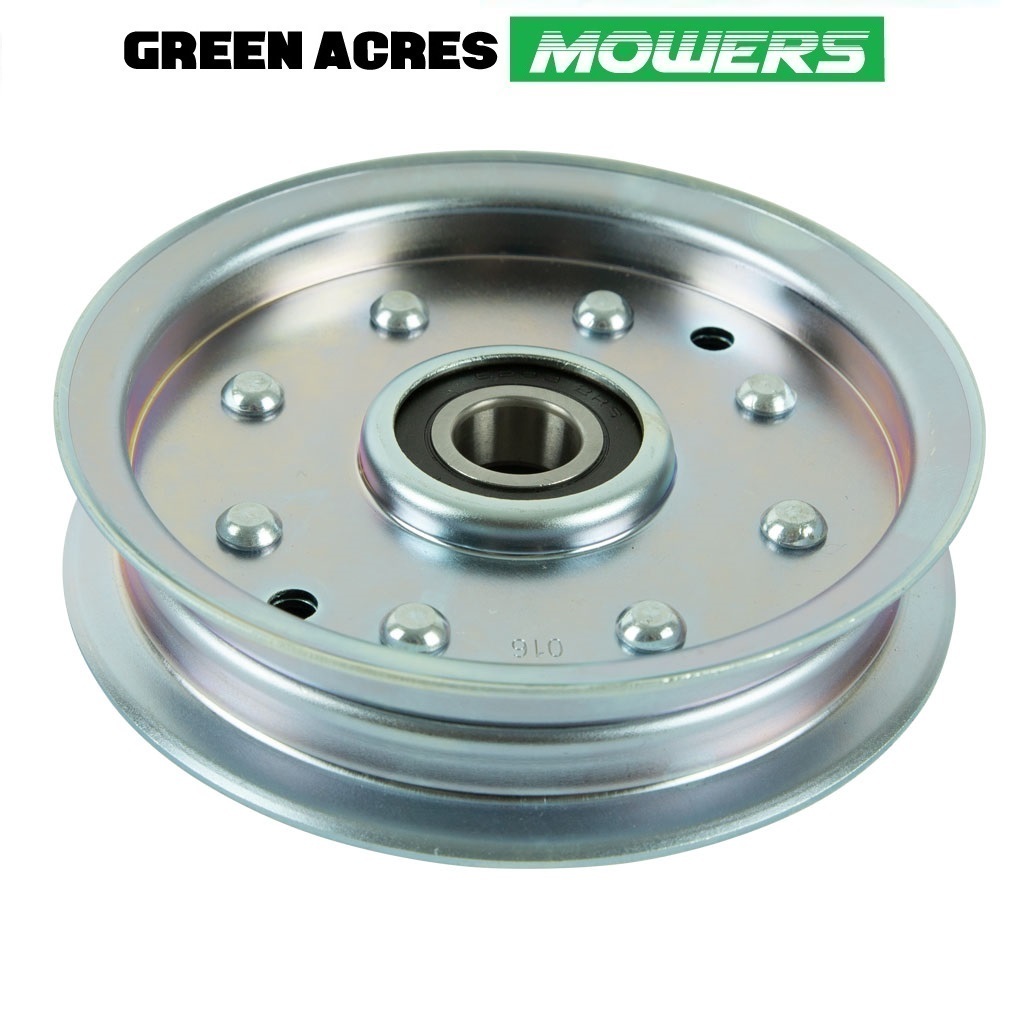

Steel Flat Idler Pulley with Flange

Standard Pack: 1

Steel flat idler pulley

Measurements:

• 0.669 Inch, 17mm Inside Diameter
• 4 7/8 Inch, 123.82mm Outside Diameter
• 4 7/8 Inch, 123.82mm Pulley Dimension "A"
• 4 1/4 Inch, 107.95mm Pulley Dimension "B"
• 0.669 Inch, 17mm Pulley Dimension "C"
• 1 Inch, 25.4mm Pulley Dimension "D"
• .250 Inch, 3.65mm Pulley Dimension "F"
• 0.06 Inch, 1.524mm Pulley Dimension "T"

Fits: Selected Models

42 Inch (1067mm) cut Cub Cadet 1000 Series ride-on lawn mower models, 2 required per unit

• LTX1042 [LTX 1042] (model 13AP93AS330 years 2014 to 2015)
• LTX1042KW [LTX 1042 KW] (model 13AG93AS330 year 2014)

42 Inch (1067mm) cut Cub Cadet  RZT L Series zero turn radius (ZTR) ride-on lawn mower models, 1 required per unit

• RZT-L42 [RZT L 42] (model 17ARCACS330 year 2015)

54 Inch (1372mm) cut Cub Cadet 1000 Series ride-on lawn mower models, 2 required per unit

• GTX1054 [GTX 1054] (model 14BZ94AK330 year 2014)

38 Inch (965mm) cut Masport ride-on lawn mower models, 1 required per unit

• G3800 (15.5/38SD model 552986 years 2018 to 2020)

42 Inch (1067mm) cut Masport ride-on lawn mower models, 2 required per unit

• H 4200 [H4200] (model 552855 years 2014 to 2016)
• HVT 4200 [HVT4200] (model 552856 years 2014 to 2016)

42 Inch (1067mm) cut Masport zero turn radius (ZTR) ride-on lawn mower models, 1 required per unit

• ZVT 4200 [ZVT4200] (models 552857 years 2014 to 2017 and 552987 years 2018 to 2020)

38 Inch (965mm) cut Morrison ride-on lawn mower models, 1 required per unit

• G380 (model 552852 years 2014 to 2016)

38 Inch (965mm) cut MTD ride-on lawn mower models, 1 required per unit

• 13.5/38 (model 13A1765F308 years 2014 to 2015)
• Yard Machines YM 13.5/38 (model 13A1762F329 year 2014)
• Yard Machines YM 420/38 (model 13A2762F329 year 2014)

Replaces OEM:

• 756-05042
