Product Details

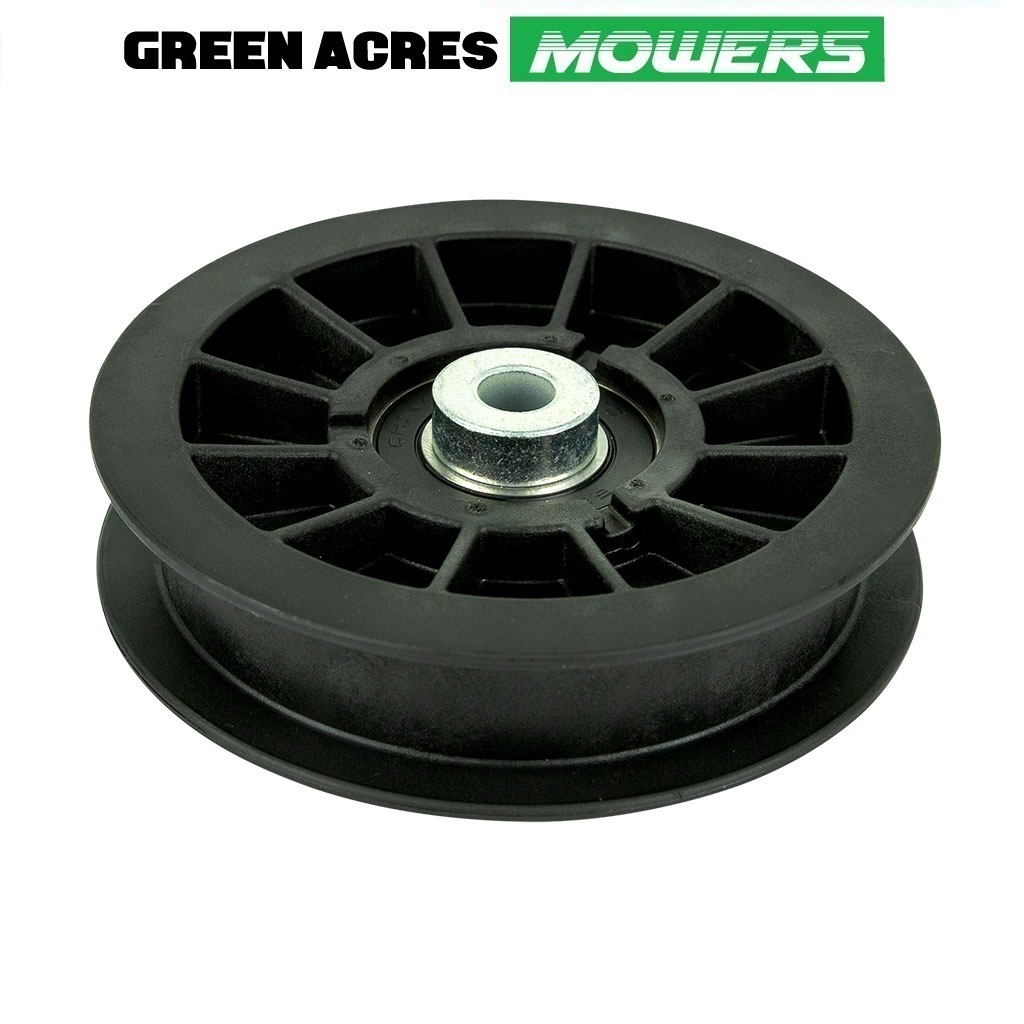

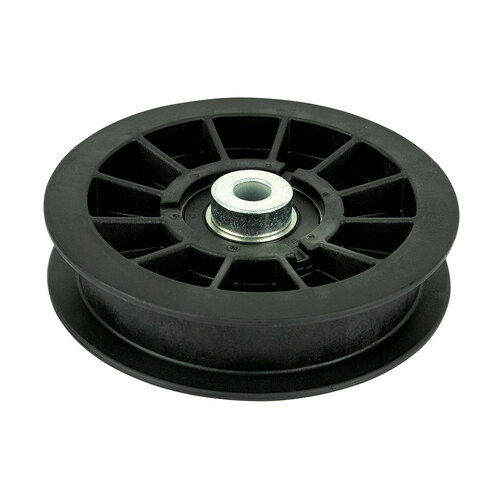

TORO TITAN, Z Master, Transmission Nylon Flat Idler Pulley

Standard Pack: 1

Features:

• Glass filled nylon
• Quality double sealed roller bearing

Measurements:

• 1 1/16 Inch, 26.98mm Height
• 3/8 Inch, 9.52mm Inside Diameter
• 4 9/64 Inch, 105.17mm Outside Diameter
• 4 9/64 Inch, 105.17mm Pulley Dimension "A"
• 3 1/2 Inch, 88.9mm Pulley Dimension "B"
• 3/8 Inch, 9.52mm Pulley Dimension "C"
• 3/4 Inch, 19.05mm Pulley Dimension "D"
• .106 Inch, 2.69mm Pulley Dimension "T"

Fits: Models

48 Inch (1220mm) cut TORO TITAN zero turn radius (ZTR) ride-on models

• MX 4880 (MX4880 model 74871 [2] year 2013)
• Z 4800 (Z4800 models 74812 [2] year 2007 and 74813 [2] year 2008)
• ZX 4800 (ZX4800 models 74861 [2] years 2015 to 2016 and 74912 [2] year 2010)
• ZX 4820 (ZX4820 model 74920 [2] years 2011 to 2013)
• Z Master (Commercial 2000 Series model 74141 [1] years 2015 to 2016)

52 Inch (1320mm) cut TORO TITAN zero turn radius (ZTR) ride-on models

• Z 5200 (Z5200 models 74814 [2] year 2007 and 74815 [2] year 2008)
• Z Master (Commercial 2000 Series model 74143 [1] years 2014 to 2016)

54 Inch (1370mm) cut TORO TITAN zero turn radius (ZTR) ride-on models (2 required per unit)

• MX 5400 (MX5400 models 74872 year 2013 and 74892 years 2015 to 2016)
• ZX 5400 (ZX5400 model 74914 years 2009 to 2010)
• ZX 5420 (ZX5420 model 74924 years 2011 to 2013)

60 Inch (1524mm) cut TORO TITAN zero turn radius (ZTR) ride-on models (2 required per unit)

• MX 6080 (MX6080 model 74873 years 2012 to 2013)
• ZX 6020 (ZX6020 model 74843 years 2011 to 2013)
• ZX 6050 (ZX6050 model 74824 years 2009 to 2010)

Replaces OEM:

• 109-3397
